Data sheet
| Water Capacity | 2 litres |
| Working Pressure | 200 bar |
| Test Pressure | 300 bar |
| Length (Nominal) | 360 mm |
| Weight (Nominal) | 2,3 kg without neckring, without footring |
| Diameter (Nominal) | 100 mm |
| Design Standard | EN ISO 9809-1: 2010 |
| Approval | TPED 2010/35/EU with PI (π) marking |
| Material | Steel 34 CrMo4 |
| Bottom Shape | Convex |
| Neck Thread | 17 E (W 19,8 x 1/14´´) |
| Neckring | Without |
| Painting | Grey RAL 7037 |

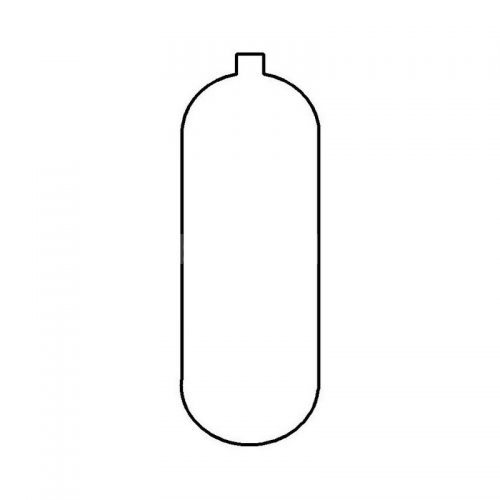

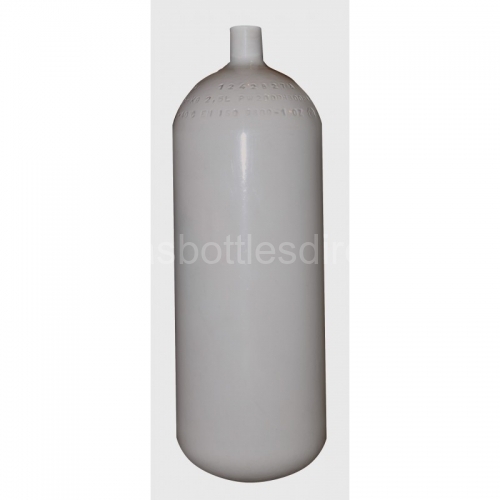

Steel cylinder for technical gases - Argon, Oxygen, Nitrogen, Helium , Air and their mixtures.
Cylinders are painted with primer and top coating. Body and Shoulder in Grey colour RAL 7037.
Cylinders are manufactured and tested according to EN ISO 9809-1 and approved according to TPED (Transportable Pressure Equipment Directive) 2010/35/EU with PI (π) marking allowing the cylinders to be used, transported and filled all over the European Union.
Cylinder material: Chrome Molybdenum Steel 34CrMo4.
Oxygen clean.
Gas service is not stamped on the cylinder shoulder.
Neck Thread: 17E (W19,8 x 1/14´´).
Plugged with plastic plug.
Without neck ring.
Valves are available upon request, depending on gas type and country of use. Residual pressure valves (RPV) available.
Cylinder retest period is 10 years.
| Volume | 2 l |
|---|---|
| Diameter | 100 mm |
| Working pressure | 200 bar |
| Test pressure | 300 bar |
| Weight | 2,3 kg |
| Bottom | convex |
| Thread | 17 E (W 19,8 x 1/14´´) |
