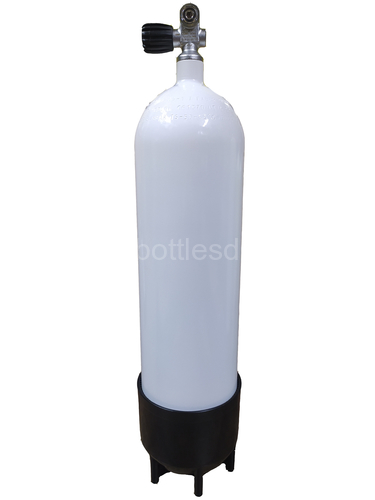

12L/ 230 bar/ convex cylinder_171 mm FABER with valve and boot

12L/ 230 bar/ convex cylinder_171 mm  FABER with valve and boot
List Number: 12L/230/CONV/171
Warranty:24 months
Manufacturer:Faber
Price excluding VAT:203,33 €
Price including VAT:246,03 €
In Stock
246,03 €
Add to Cart
pc
Description
Images
Parametres
Files and Links

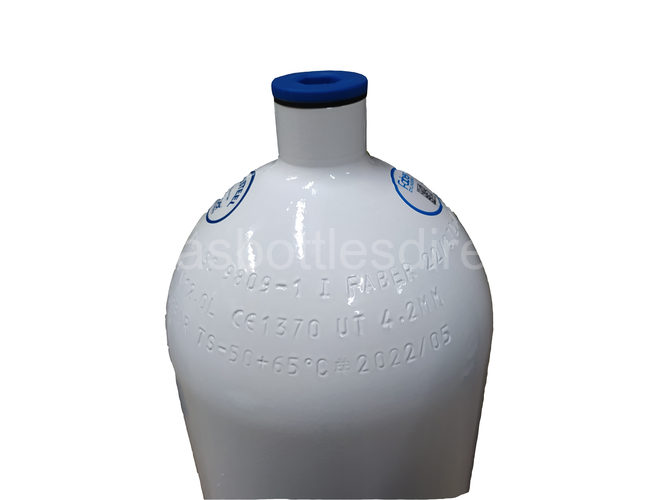

Cylinder specification:

  • capacity: 12 liters
  • working pressure: 230 bar
  • testing pressure: 345 bar
  • diameter: 171 mm
  • bottom: convex
  • length (without valve): 670 mm
  • weight of cylinder: 13,3 kg
  • thread: M25x2
  • color: white

*If your ordered cylinders are suposed to be a twin set, please write it in the note.

Cylinders have European Certificate – Declaration of Conformity by Tüv Süd Czech s.r.o.



Valve specification:

  • working pressure: 232 bar
  • right or left
  • thread: M25x2
  • connection: DIN G5/8"
  • rubber handwheel
  • Nitrox clean: up to 40% O2
  • producer: San-o-Sub



Rubber cylinder boot 171-178 mm:

  •      Diameter: 171 mm diameter
  •      Color: Black
  •      Material: Rubber
  •      Manufacturer: Scubapro
12L/ 230 bar/ convex cylinder_171 mm  FABER with valve and boot
12L/ 230 bar/ convex cylinder_171 mm  FABER
12L/ 230 bar/ convex cylinder_171 mm  FABER
