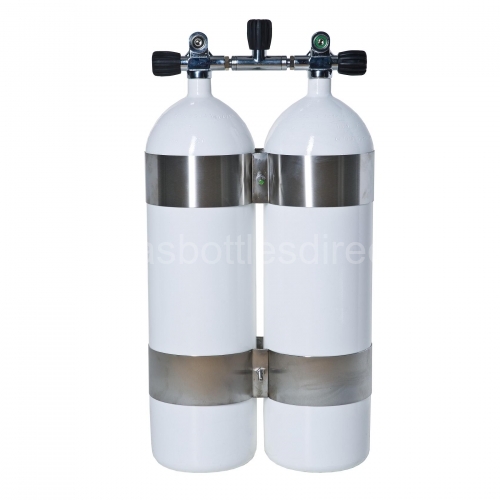

Twin set 2 x 12L/230 bar/171 mm/concave DIR

Twinset 12L/171/230 Dir
List Number: TWIN12/171/230/KONK/
Warranty:24 months
Price excluding VAT:362,28 €
Price including VAT:438,36 €
In Stock
438,36 €
Add to Cart
Files and Links

Twin set with complete manifold and stainless steel tank bands

Cylinder specification:

  • capacity: 12 liters
  • working pressure: 230 bar
  • testing pressure: 345 bar
  • diameter: 171 mm
  • bottom: concave
  • length (without valve): 685 mm
  • weight of cylinder: 13,4 kg
  • thread: M25x2
  • color: white

Cylinders have European Certificate – Declaration of Conformity by Tüv Süd Czech s.r.o.


  • Complete manifold for twin
  • Bar 232
  • For bottles with diameter 171 mm
  • Thread M25x2
  • Connection DIN/INT G5/8"
  • Rubber handwheel
  • Nitrox clean

Tank bands:

  • Diameter 171 mm
  • Width 60 mm
  • 2 screws

Twin sets are shipped separately because of a risk of damaging assembled valves!

Twinset 12L/171/230 Dir
