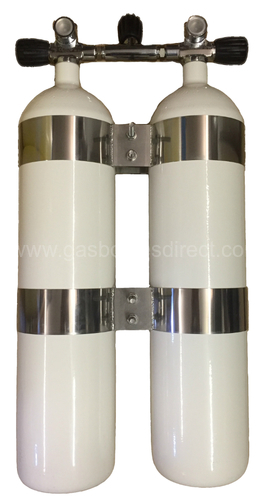

Twin set 2 x 8L/300 bar concave DIR WIDE bands set

Twin set 2 x 8L/300 bar DIR WIDE bands set
List Number: TWIN8/300DIR
Warranty:24 months
Manufacturer:VITKOVICE CYLINDERS a.s.
Price excluding VAT:323,38 €
Price including VAT:391,29 €
In Stock
391,29 €
Add to Cart
pc
Description
Images
Parametres
Files and Links

Twin set 2x 8/300 bar with complete manifold and stainless steel tank bands

Cylinder specification:

  • capacity: 8 liters
  • working pressure: 300 bar
  • testing pressure: 450 bar
  • diameter: 140 mm
  • bottom: concave
  • length (without valve): 700 mm
  • weight of cylinder: 10,5 kg
  • thread: M25x2
  • color: white

Cylinders have European Certificate – Declaration of Conformity by Tüv Süd Czech s.r.o.

Valves:

  • Complete manifold for twin
  • Bar 300
  • with manifold 171 mm
  • Thread M25x2
  • Connection DIN/INT G5/8"
  • Rubber handwheel
  • Nitrox clean

Tank bands:

  • Diameter 140 mm/manifold 171 mm
  • Width 60 mm
  • 2 screws

Twin sets are shipped separately because of a risk of damaging assembled valves!

Twin set 2 x 8L/300 bar DIR WIDE bands set
